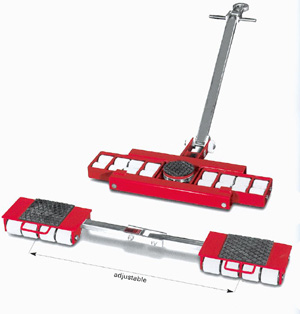

GKS-PERFEKT Transport Trolleys
Model F18 and L18. For loads up to 36 tonnes.

Model Type F18 L18   Item Number F1801000 L1801000   Load Capacity 18t 18t   16 load-bearing rollers 85 X 85 mm, B-rollers in white, (installed in two movable cassettes) installation height (mm) 110 110   Contact surface area per cassette with antiskid honeycombed rubber supports (mm) 220 X 220   Adjustable spacer rod (mm) 740 -1500   Turnable 170mm with axel thrust bearing, swivelling, steering angle 180 Degrees   Steering rod with tow-bar lug (mm) 1080   Lenght X Width (mm) 620 X 1030   Unladen weight (kg) 60 85   Total loading capacity for F18 and L18 Models 36 t

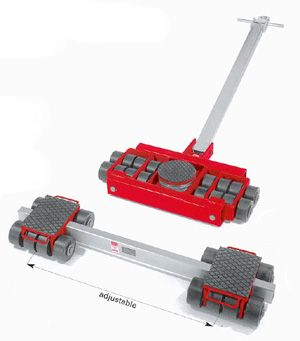

GKS-PERFEKT Transport Trolleys
Model F20 and L20. For loads up to 40 tonnes.

Model Type F20 L20   Item Number F2001000 L2001000   Load Capacity 20t 20t   16 load-bearing rollers 85 X 85 mm, B-rollers in white, (installed in two movable cassettes) installation height (mm) 180 180   Contact surface area per cassette with antiskid honeycombed rubber supports (mm) 280 X 220   Adjustable spacer rod (mm) 610 -1600   Turnable 170mm with axel thrust bearing, swivelling, steering angle 180 Degrees   Steering rod with tow-bar lug (mm) 1620   Lenght X Width (mm) 1090 X 730   Unladen weight (kg) 95 188   Total loading capacity for F20 and L20 Models 40 t
