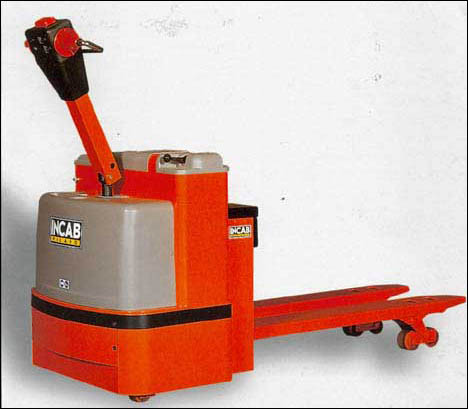

TS STAR |
|
TS 18 12 V |
TS 20 12 V |
TS 18 24 V |
TS 20 24 V |
| 1 |
Q |
Capacity |
KG |
1.800 |
2.000 |
1.800 |
2.000 |
| 2 |
|
Up to |
MM |
200 |
200 |
200 |
200 |
| 3 |
|
Residual capacity Up to H3 |
KG |
1.800 |
2.000 |
1.800 |
2.000 |
| 4 |
C |
Load center |
MM |
600 |
600 |
600 |
600 |
| 5 |
|
Traction Type (manual or self propelled) |
|
S |
S |
S |
S |
| 6 |
|
Driving position (1)=Walkie-(2)=Ride on |
|
1 |
1 |
1 |
1 |
| 7 |
|
Wheelsfull Ruber-Aluminium Cast |
|
yes |
yes |
yes |
yes |
| 8 |
|
Wheels(X)=Driving (N. Front/Rear) |
|
0/X=1 |
0/X=1 |
0/X=1 |
0/X=1 |
| 9 |
|
Rollers (N. Front/Type) |
|
4/V |
4/V |
4/V |
4/V |
| 10 |
H3 |
Maximum lifting height standard lift at forks |
MM |
200 |
200 |
200 |
200 |
| 11 |
H2 |
Normal free lift |
MM |
200 |
200 |
200 |
200 |
| 12 |
|
Standard forks _ L (lenght) |
MM |
1.180 |
1.180 |
1.180 |
1.180 |
| 13 |
|
_B (width at point) |
MM |
170 |
170 |
170 |
170 |
| 14 |
|
_S (thickness) |
MM |
50 |
50 |
50 |
50 |
| 15 |
L |
Dimensions _ Total lenght |
MM |
1.844 |
1.844 |
1.844 |
1.844 |
| 16 |
L2 |
Lenght without forks |
MM |
664 |
664 |
664 |
664 |
| 17 |
B |
Dimensions _ Total width |
MM |
770 |
770 |
770 |
770 |
| 18 |
M |
External fork width (min/max) |
MM |
520 |
520 |
520 |
520 |
| 19 |
|
External legs width (min/max) |
MM |
- |
- |
- |
- |
| 20 |
|
Internal legs width (max) |
MM |
- |
- |
- |
- |
| 21 |
|
Fork clearance from ground |
MM |
87 |
87 |
87 |
87 |
| 22 |
H1 |
Height with lowered mast |
MM |
- |
- |
- |
- |
| 23 |
H4 |
height with lifted mast |
MM |
- |
- |
- |
- |
| 24 |
H6 |
Height of rubber from ground |
MM |
1.400 |
1.400 |
1.400 |
1.400 |
| 25 |
WA |
Turning radius _ External |
MM |
1.580 |
1.580 |
1.580 |
1.580 |
| 26 |
AST |
Minimum Aisle _ Pallets 800X1200 |
MM |
1.790 |
1.790 |
1.790 |
1.790 |
| 27 |
|
_ Pallets 1200X1200 |
MM |
- |
- |
- |
- |
| 28 |
|
Stability CEE norms 86/663-89/240 |
|
yes |
yes |
yes |
yes |
| 29 |
|
Speed _ Driving with/without load |
KM/H |
2.6/3.6 |
2.6/3.6 |
4.6/4.8 |
4.6/4.8 |
| 30 |
|
Speed _ Lifting with/without load |
M/Min |
3/4.2 |
3/4.2 |
4.2/6.2 |
4.2/6.2 |
| 31 |
|
Speed _ Lowering with/without load |
M/Min |
REG |
REG |
REG |
REG |
| 32 |
|
Slopes _ with/without load |
% |
3 |
3 |
8/10 |
8/10 |
| 33 |
|
Weight of stracker without batteries |
KG |
287 |
297 |
293 |
303 |
| 34 |
|
Wheels and rollers _ Driving N./Dimensions |
N/MM |
1/200X75 |
1/200X75 |
1/200X75 |
1/200X75 |
| 35 |
|
_ Front N./Dimensions |
N/MM |
4/85X56 |
4/85X56 |
4/85X56 |
4/85X56 |
| 36 |
|
_ Rear N./Dimensions |
N/MM |
2/70X55 |
2/70X55 |
2/70X55 |
2/70X55 |
| 37 |
M2 |
Ground Clearance _ at lowest point |
MM |
35 |
35 |
35 |
35 |
| 38 |
|
Brakes (1)=pedal(2)=Parking- (3)=on rudder |
|
2-3 |
2-3 |
2-3 |
2-3 |
| 39 |
|
(1)=mecc- (2)=Hydraulic- (3)=Electromagnetic |
|
3 |
3 |
3 |
3 |
| 40 |
|
Electric motors _ Traction motor p S2 |
KW |
0.6 |
0.6 |
2.0 |
2.0 |
| 41 |
|
Lifting motors _ Traction motor p S3 25% |
KW |
1.3 |
1.3 |
2.4 |
2.4 |
| 42 |
|
Speed control reverse direction |
|
yes |
yes |
yes |
yes |
| 43 |
|
Type _ (1)=Manual-(2)=Electronic |
|
2 |
2 |
2 |
2 |
| 44 |
|
Steering type _ (1)=Mecc- (2)=Hydraulic |
|
1 |
1 |
1 |
1 |
| 45 |
|
Transmission _ type (1)=gears |
|
1 |
1 |
1 |
1 |
| 46 |
|
Hydraulic system _ Pressure |
Bar |
125 |
125 |
125 |
125 |
